Below are examples showing how to calculate the four parts of the wing. There are calculations for both the 2 and 10 meter turbines. This is the calculation for the 2 meter turbine (3,14 m2)

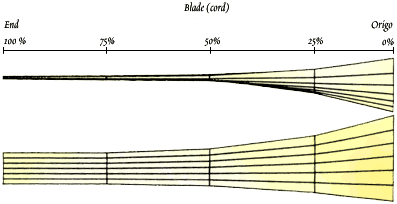

1. First part; the Momentum points are 1/4 out on the cord measured from the profile end.

b = Blade width
R = Turbine radius
r = Radius of respective blade element
z = Number of blades
Ca = lift force coefficient by r
lambda = Rotor speed (8-9 )


0,15 =

5.6 x 2
--------------------------
2 x 0,8 x 0,75 x 8 x 8

The blade width 75% out on the wing is = 0,15 m

b = Blade width
R = Turbine radius
r = Radius of respective blade element
z = Number of blades
Ca = lift force coefficient by r
lambda = Rotor speed (8-9 )


0,18 =

5.6 x 2
--------------------------
2 x 1 x 0,5 x 8 x 8

2. Second part; The blade width 50% out on the wing is = 0,18 m

b = Blade width
R = Turbine radius
r = Radius of respective blade element
z = Number of blades
Ca = lift force coefficient by r
lambda = Rotor speed (8-9 )


0,29 =

5.6 x 2
--------------------------
2 x 1,2 x 0,25 x 8 x 8

3. Third part; The bladewidth 25% out on the wing is = 0,29 m

b = Blade width
R = Turbine radius
r = Radius of respective blade element
z = Number of blades
Ca = lift force coefficient by r
lambda = Rotor speed (8-9 )


0,54 =

5.6 x 2
--------------------------
2 x 1,3 x 0,125 x 8 x 8

4. Fourth part; The blade width 25% out on the wing is = 0,54 m

Below: Ca = Lift force coefficient chart



These are the calculations for the 10 meter turbine (78,5 m2):

1. First part; the Momentum points are 1/4 out on the cord measured from the profile end.

b = Blade width
R = Turbine radius
r = Radius of respective blade element
z = Number of blades
Ca = lift force coefficient by r
lambda = Rotor speed (8-9 )
5.6 = Constant


0,35 =

5.6 x 5
--------------------------
2 x 0,8 x 0,75 x 8 x 8

The blade width 75% out on the wing is = 0,35 m

b = Blade width
R = Turbine radius
r = Radius of respective blade element
z = Number of blades
Ca = lift force coefficient by r
lambda = Rotor speed (8-9 )
5.6 = Constant


0,44 =

5.6 x 5
--------------------------
2 x 1 x 0,5 x 8 x 8

2. Second part; The blade width 50% out on the wing is = 0,44 m

b = Blade width
R = Turbine radius
r = Radius of respective blade element
z = Number of blades
Ca = lift force coefficient by r
lambda = Rotor speed (8-9 )
5.6 = Constant


0,73 =

5.6 x 5
--------------------------
2 x 1,2 x 0,25 x 8 x 8

3. Third part; The bladewidth 25% out on the wing is = 0,73 m

b = Blade width
R = Turbine radius
r = Radius of respective blade element
z = Number of blades
Ca = lift force coefficient by r
lambda = Rotor speed (8-9 )
5.6 = Constant


1,35 =

5.6 x 5
--------------------------
2 x 1,3 x 0,125 x 8 x 8

4. Fourth part; The blade width 0% out on the wing is = 1,35 m
